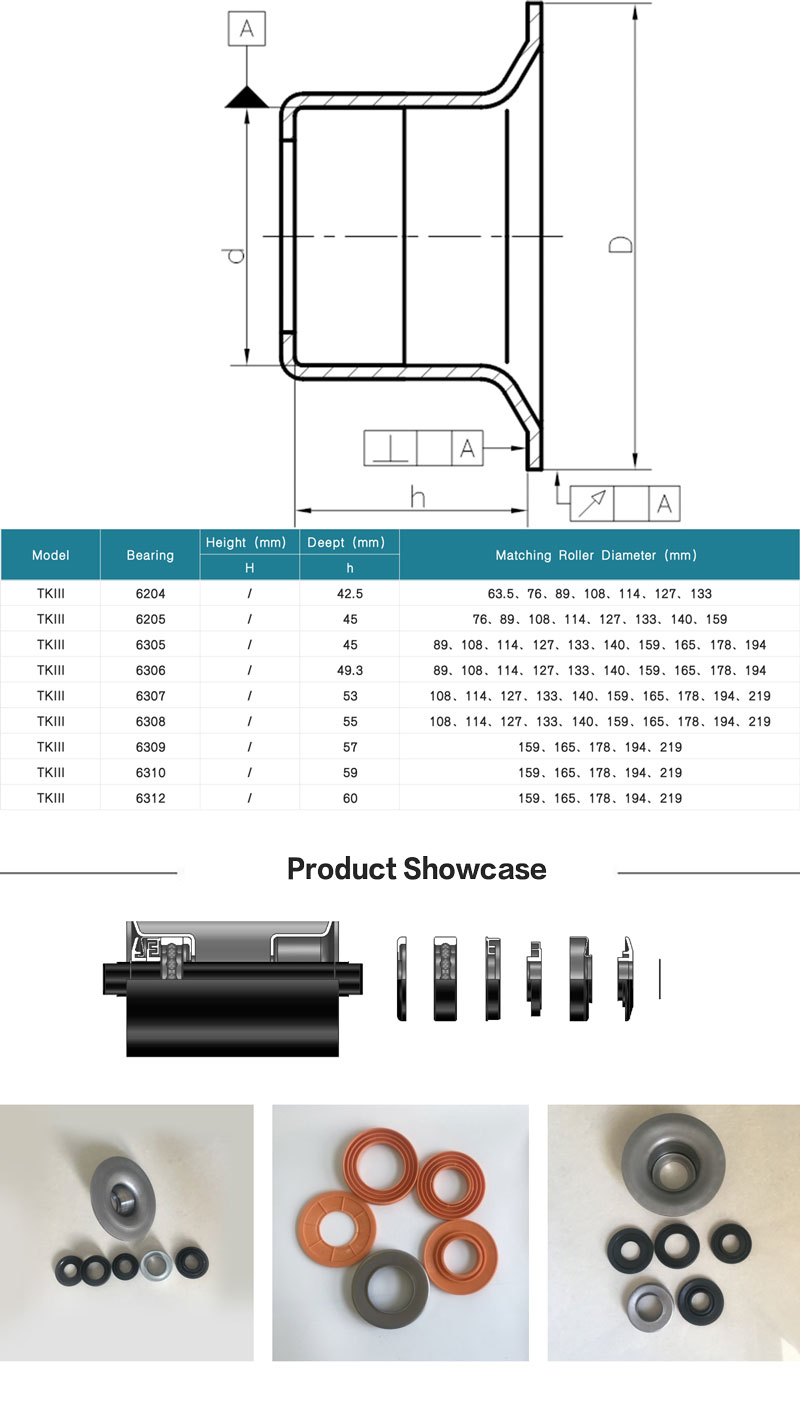

TKIII Bearing housing

◆ Cold-stamped bearing housing for robust structure.
◆ Suitable for various applications in the bulk material conveying industry.
◆ Excellent dustproof and waterproof design, superior sealing, maintenance-free.
◆ Water ingress into the idler roller does not exceed 5g after 24 hours of continuous operation and immersion testing.
◆ The protective cover can be designed for low-temperature operation, maintaining impact resistance even at -50℃.
◆ Low starting and running resistance, energy-effic

Product Description:

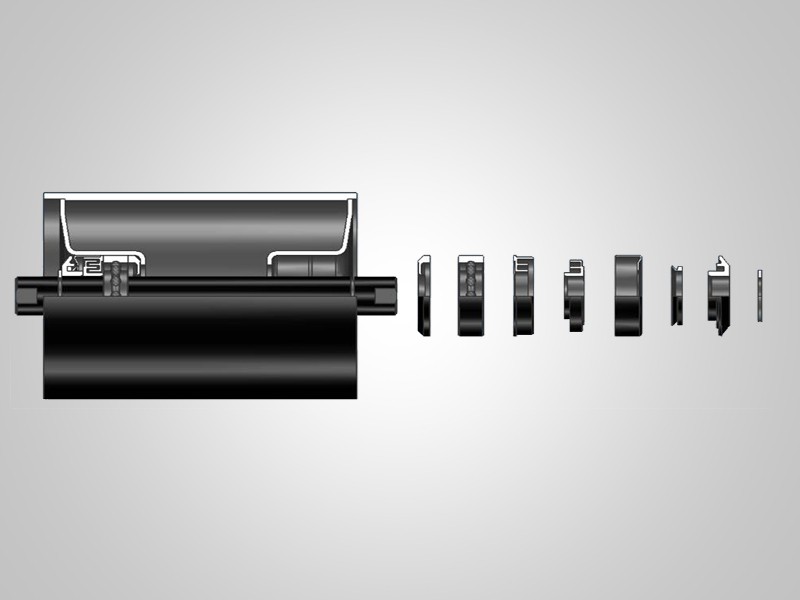

The TKIII type structure is a contact labyrinth seal structure with a single snap ring. The main components consist of a TK type bearing housing, protective cover, V-shaped rubber ring, sealing cover, outer labyrinth seal ring, inner labyrinth seal ring, and bottom seal. (A double snap ring structure is also available.)
