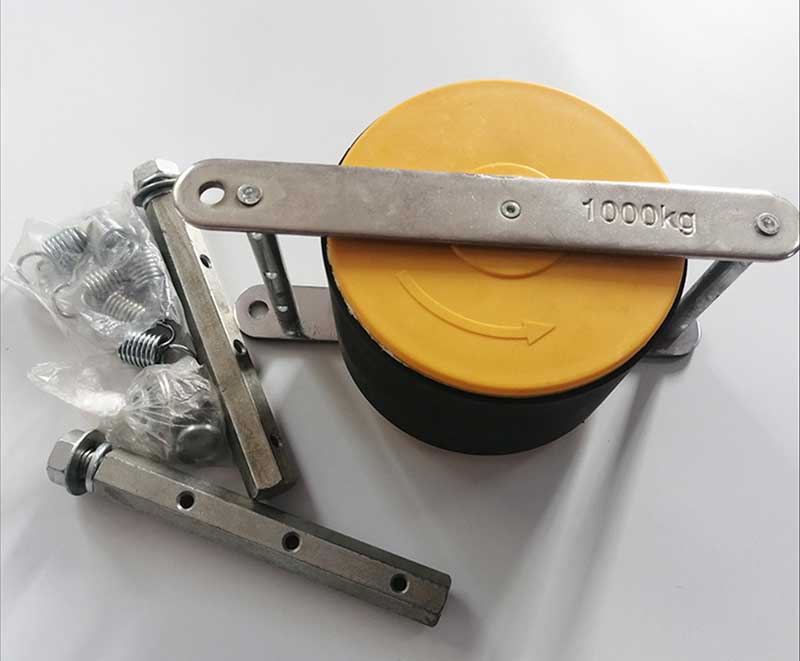

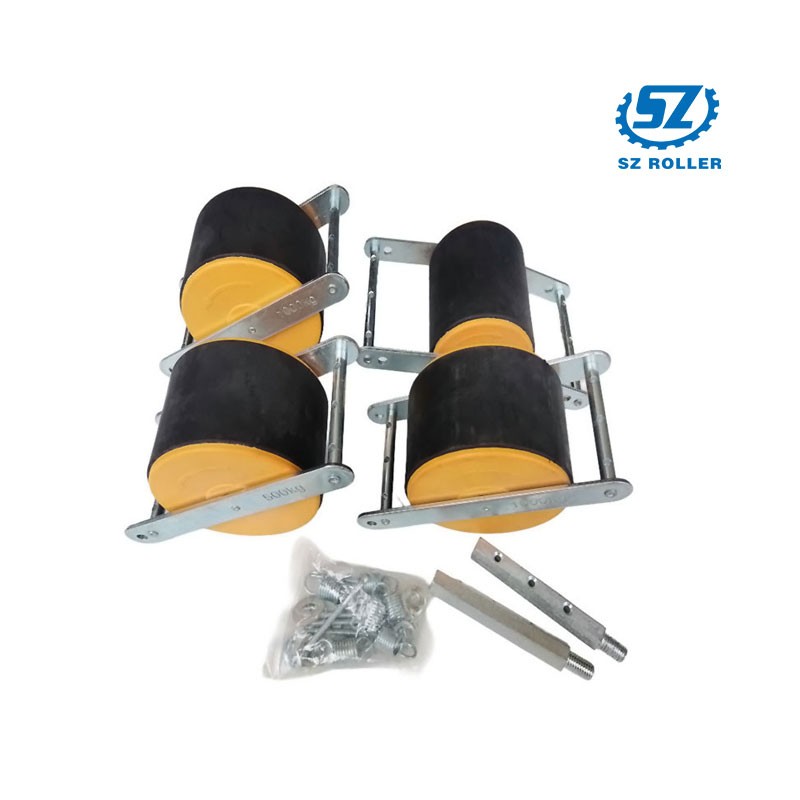

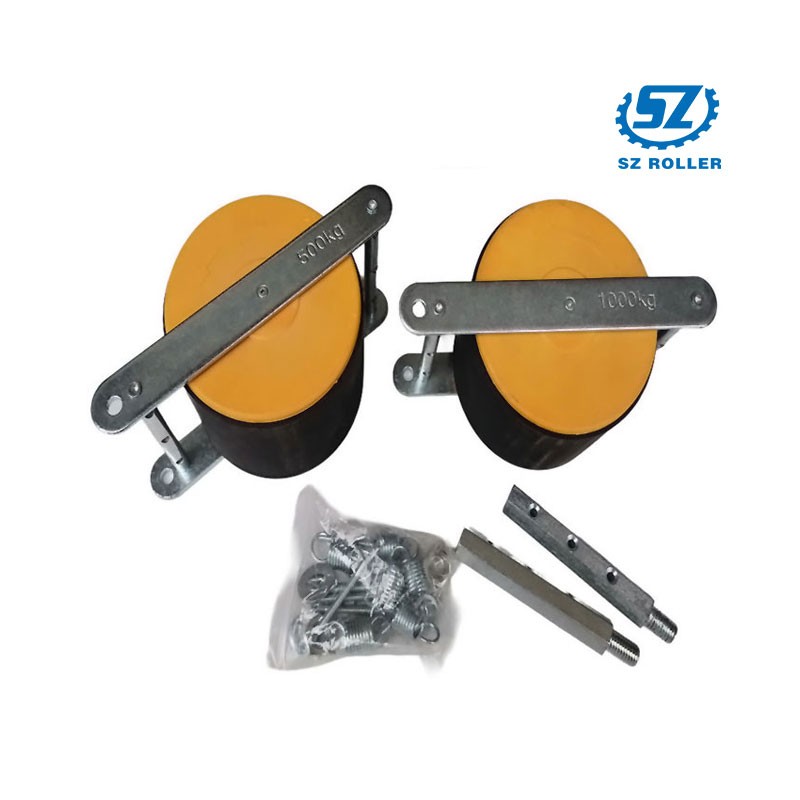

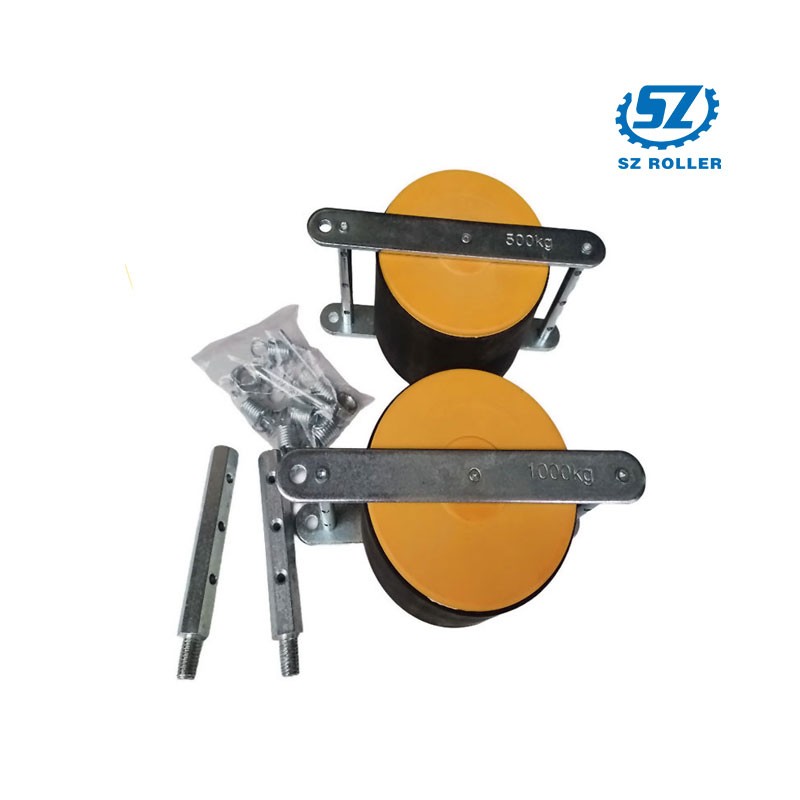

Break Roller

Product Name: Break Roller
Product Manufacturer: SZ-ROLLER

Detail introduction:

Dimeter:Ø92/120mm

Load capacity:500/1000/1500/2000kg

Structure: Internally equipped with planetary gear and centrifugal braking system.

Features: High wear resistance, low noise, durable

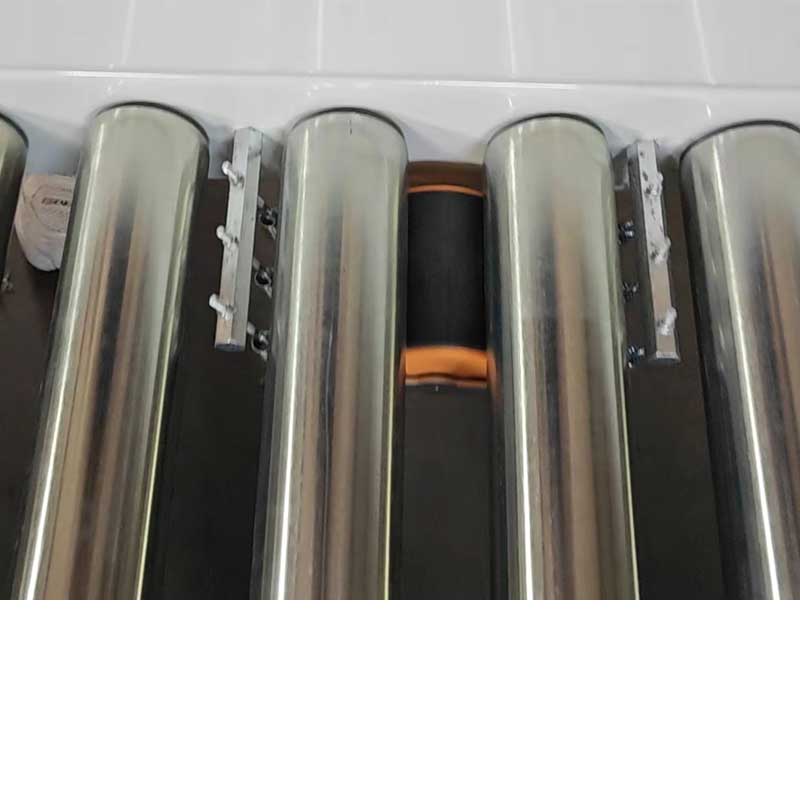

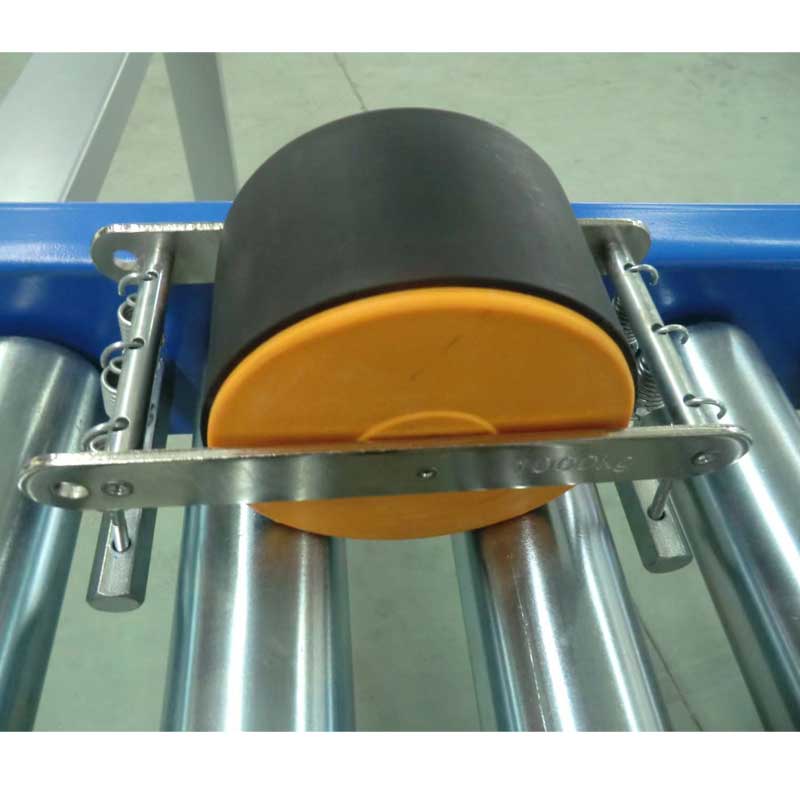

Purpose: key components of heavy-duty roller conveyors and gravity racks

Applicable places: Gravity slide rails that need to be controlled for all indoor transportation in factories, warehouses, and logistics centers

Technical requirements：
1. The mutual positions of the damping mixing cylinders on the gravity roller conveyor need to be adjusted and determined so that the speed of the conveyed objects does not exceed 0.3m/s.
2. When the conveyed goods on the pallet weigh more than 800 kg, it is recommended to install a set of damping rollers at each pallet position.
