Motor Drive Roller- O

* Built-in energy-saving DC brushless geared motor；
* Roller Material/Length/Drive method customizable;
* IP66/67 protection rating;
* Improved operability, with multiple drive cards supporting intelligent control;
* Widely used in logistics conveying, food processing, medical device manufacturing, airport logistics, postal services, and many other industries.

PDF

Product Description:

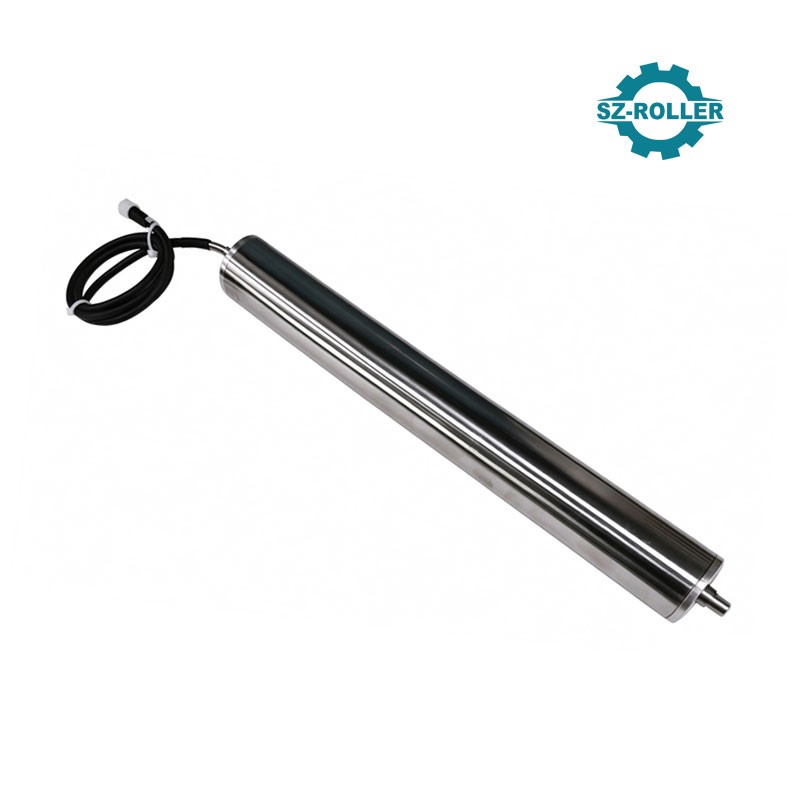

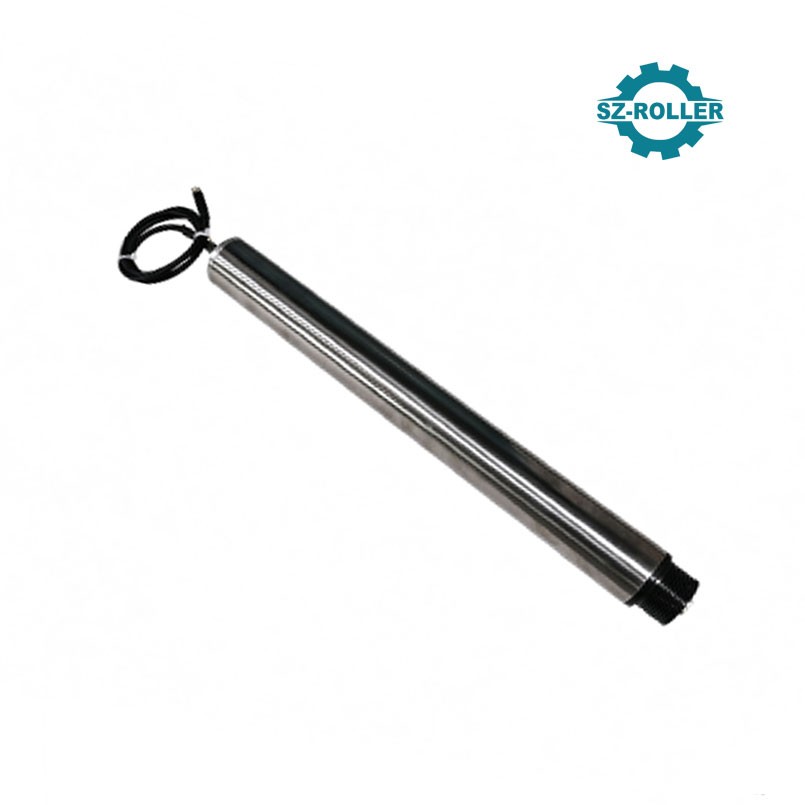

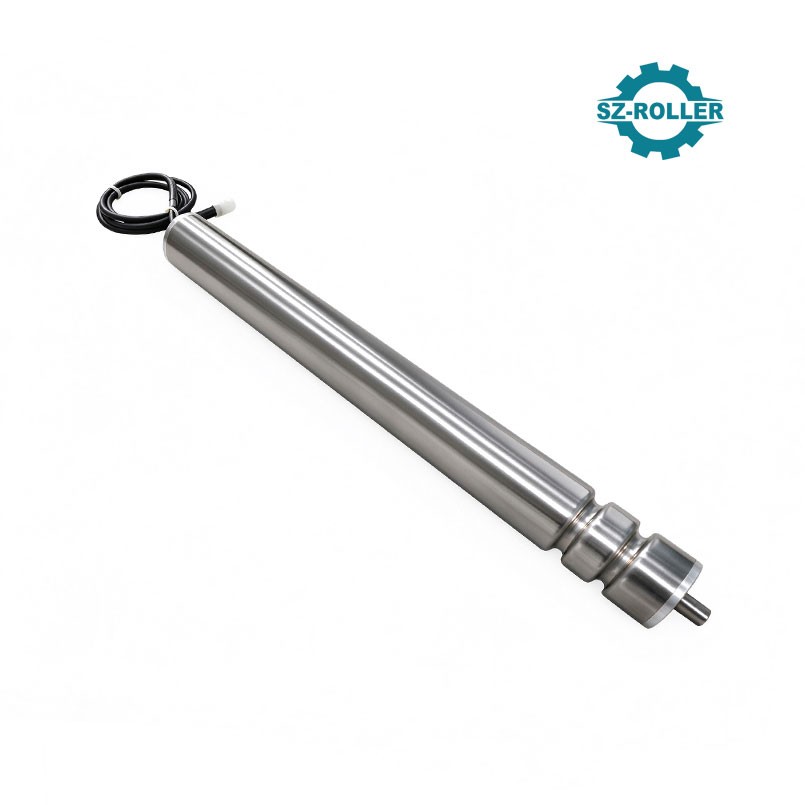

Product Name: Motor Drive Roller

Specifications:

Diameter	50 mm
Motor Type	DC Brushless Gear Motor
Rated Power	40W / 80W / 120W
Voltage	DC24V / DC48V
Speed Range	0.8 m/min – 120 m/min
Rated Torque	2.8 N·m – 53.0 N·m
Rated Traction Force	20.4 N – 424.0 N
Maximum Load	550 kg
Drive Type	Poly-V Pulley / Timing Pulley / O-Belt / Sprocket
Material	Galvanized Carbon Steel / Stainless Steel
Surface Treatment	Knurled / Brushed / Rubber Coating (Optional)
