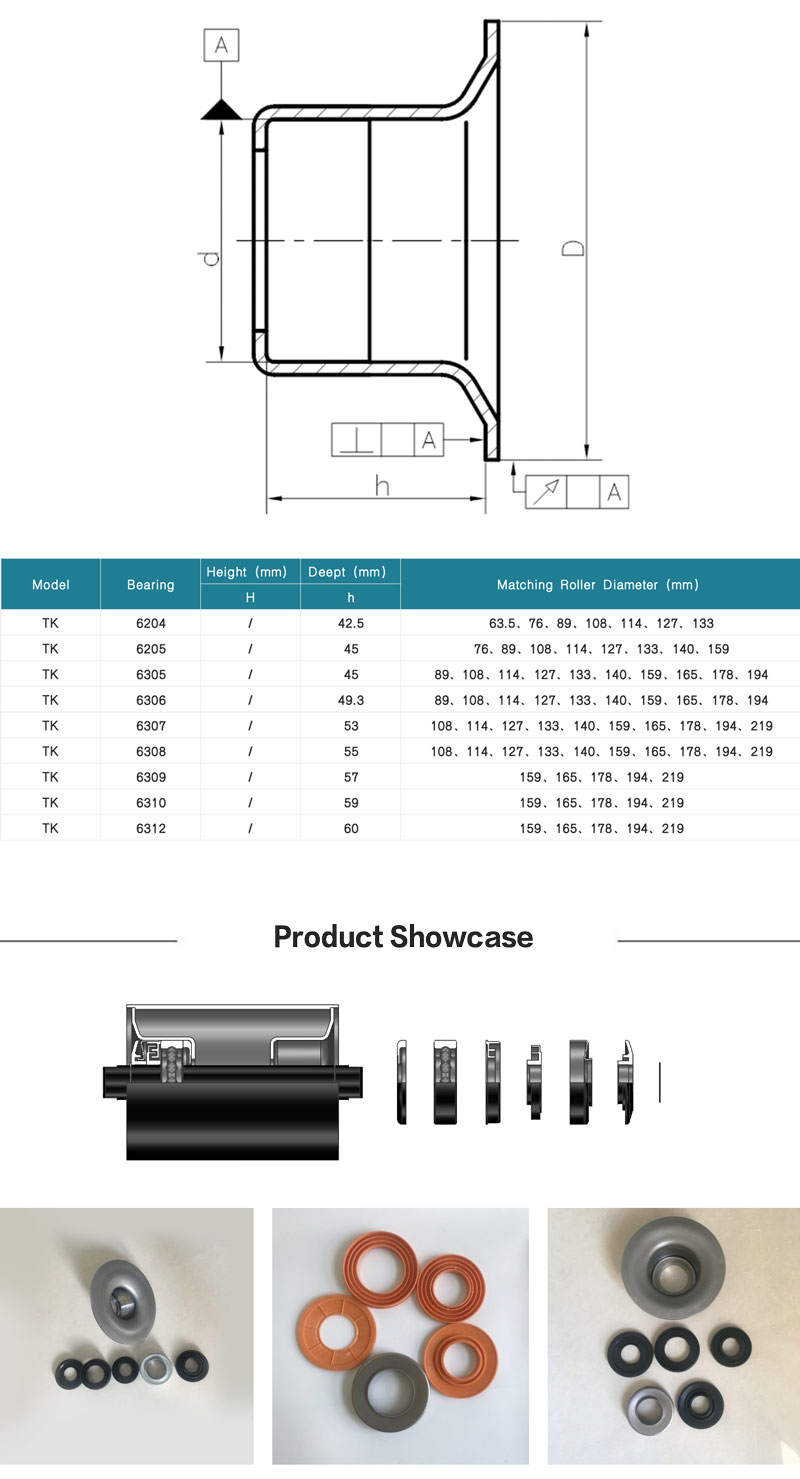

TK Bearing housing

◆ Cold-stamped bearing housing for robust structure.
◆ Suitable for various applications in the bulk material conveying industry.
◆ Excellent dustproof and waterproof design, superior sealing, maintenance-free.
◆ The protective cover can be designed for low temperatures, maintaining impact resistance even at -50℃.
◆ Low starting and running resistance, energy-efficient.
◆ Minimal end face and radial runout, smooth operation, and low noise.
◆ Service life of at least 30,000 hours under no

Product Description:

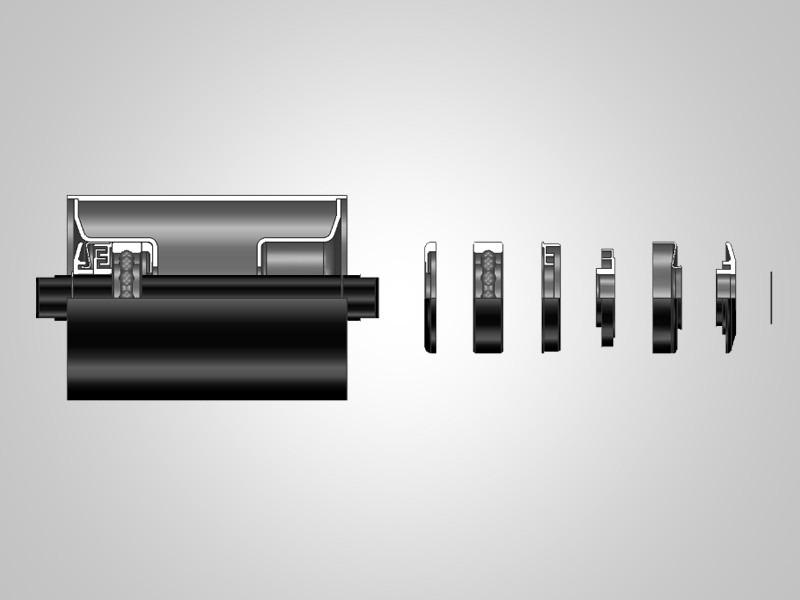

The TK type structure is a non-contact labyrinth seal structure with a single snap ring. The main components consist of a TK type bearing housing, protective cover, cover, outer labyrinth seal ring, inner labyrinth seal ring, and bottom seal. (A double snap ring structure is also available.)
