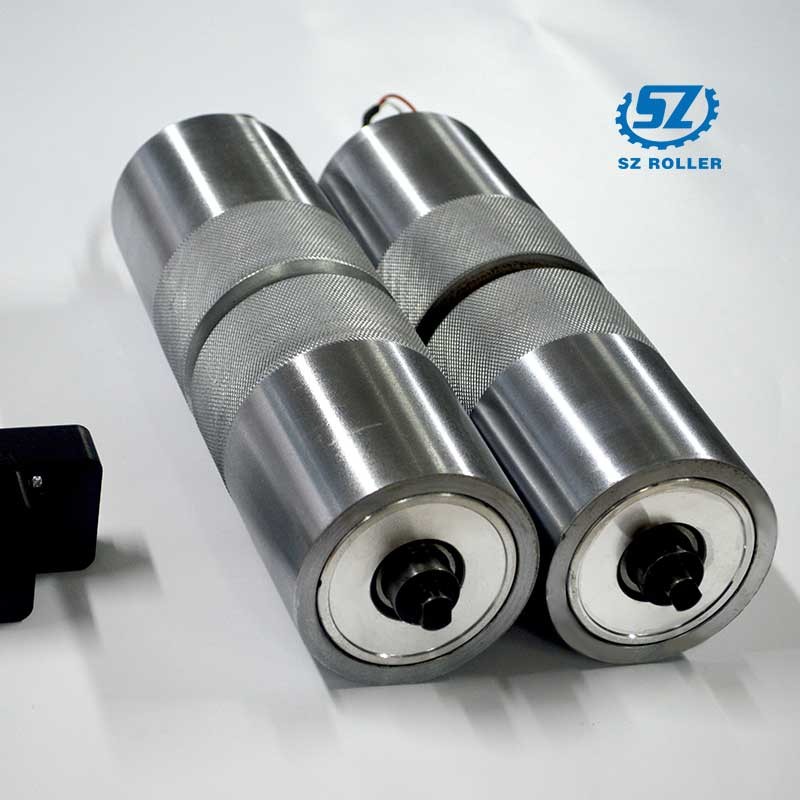

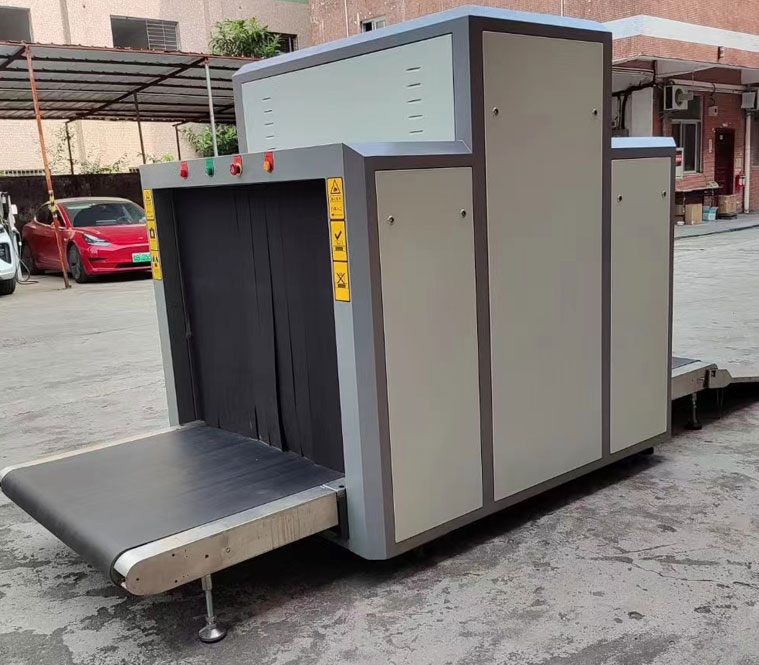

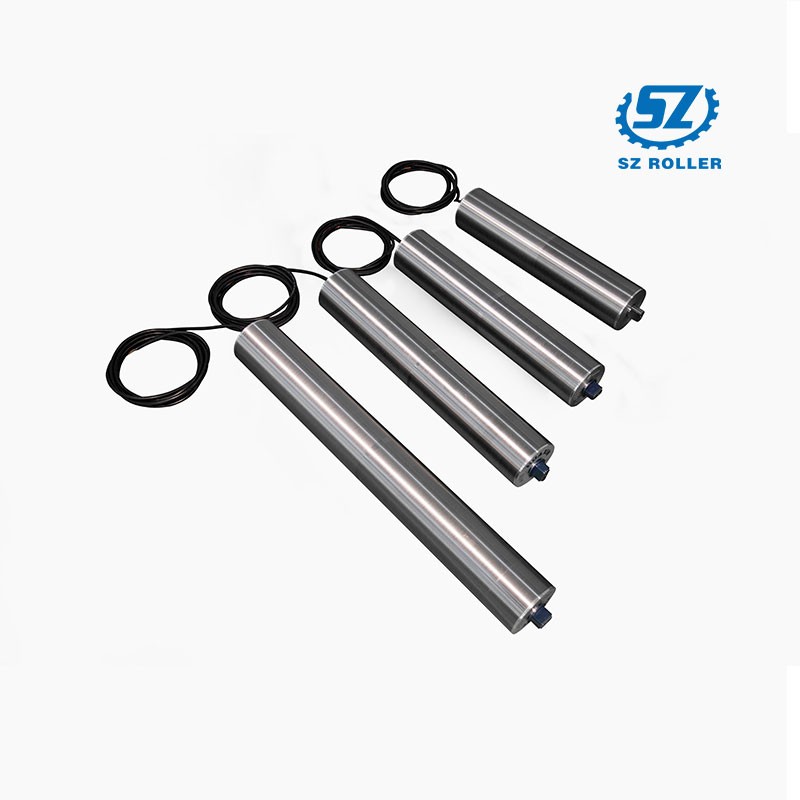

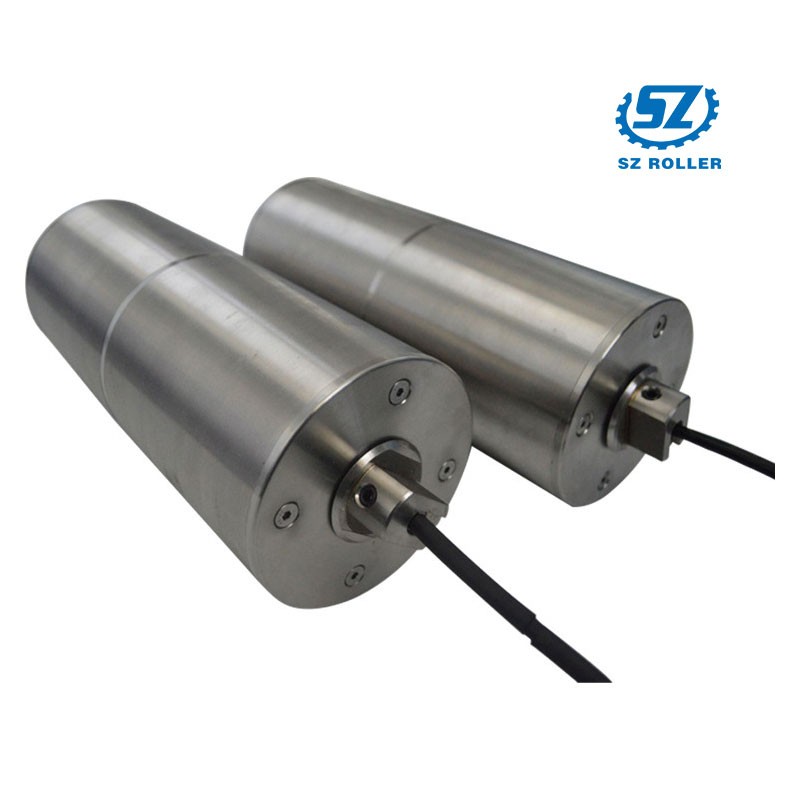

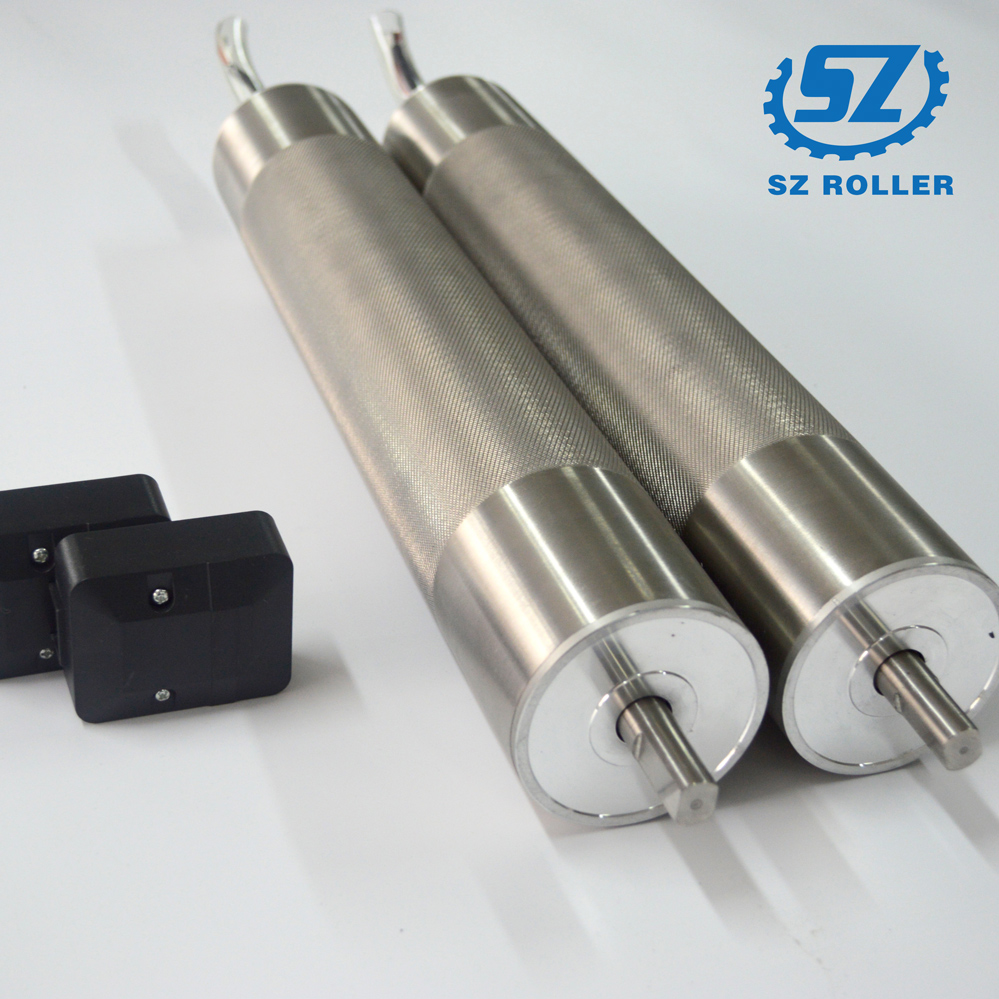

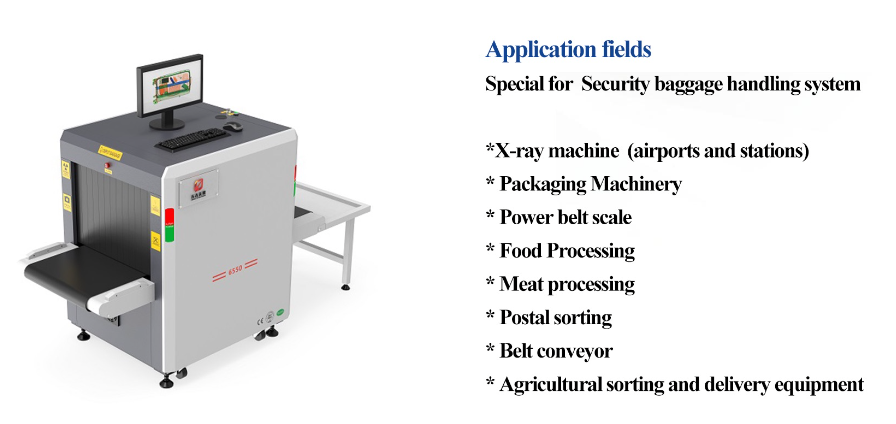

Drum motor (X-ray machine)

Product Name:  DM113i Drum motor(X-ray safety inspection equipment)

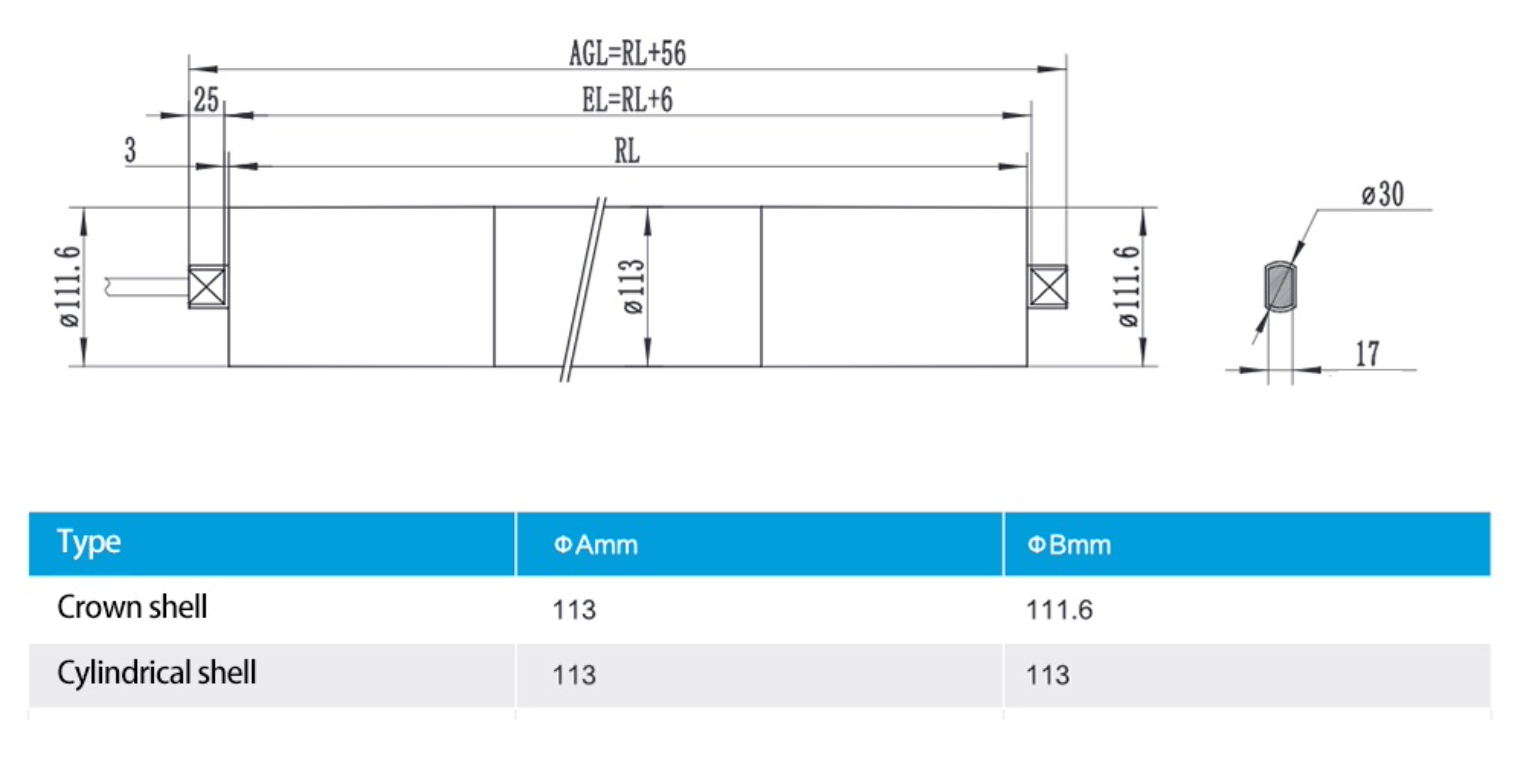

Drawing:

Description(DM113i)

1. Diameter: 113.5mm, power: 250w/370w/550w.
2. The length (RL) can be customized according to customer requirements,rubber lagging is optional.
4. Material (end cover and reducing sleeve): aluminum alloy
5. Material (Tube and shaft):Galvanized steel, SUS 304 optional.
6. 3PH or 1PH AC motor,Voltage: 415V, 380V,  220V, 115V available.Frequency: 50 or 60HZ
7.  Oil-resistant cable, length: 3 Meters
8. Insulation level: Class F, overheating protector
9. Can only be installed horizontally
10.To prevent the belt from deflecting, the pipe body is made into a roller type. Apply anti-rust oil.

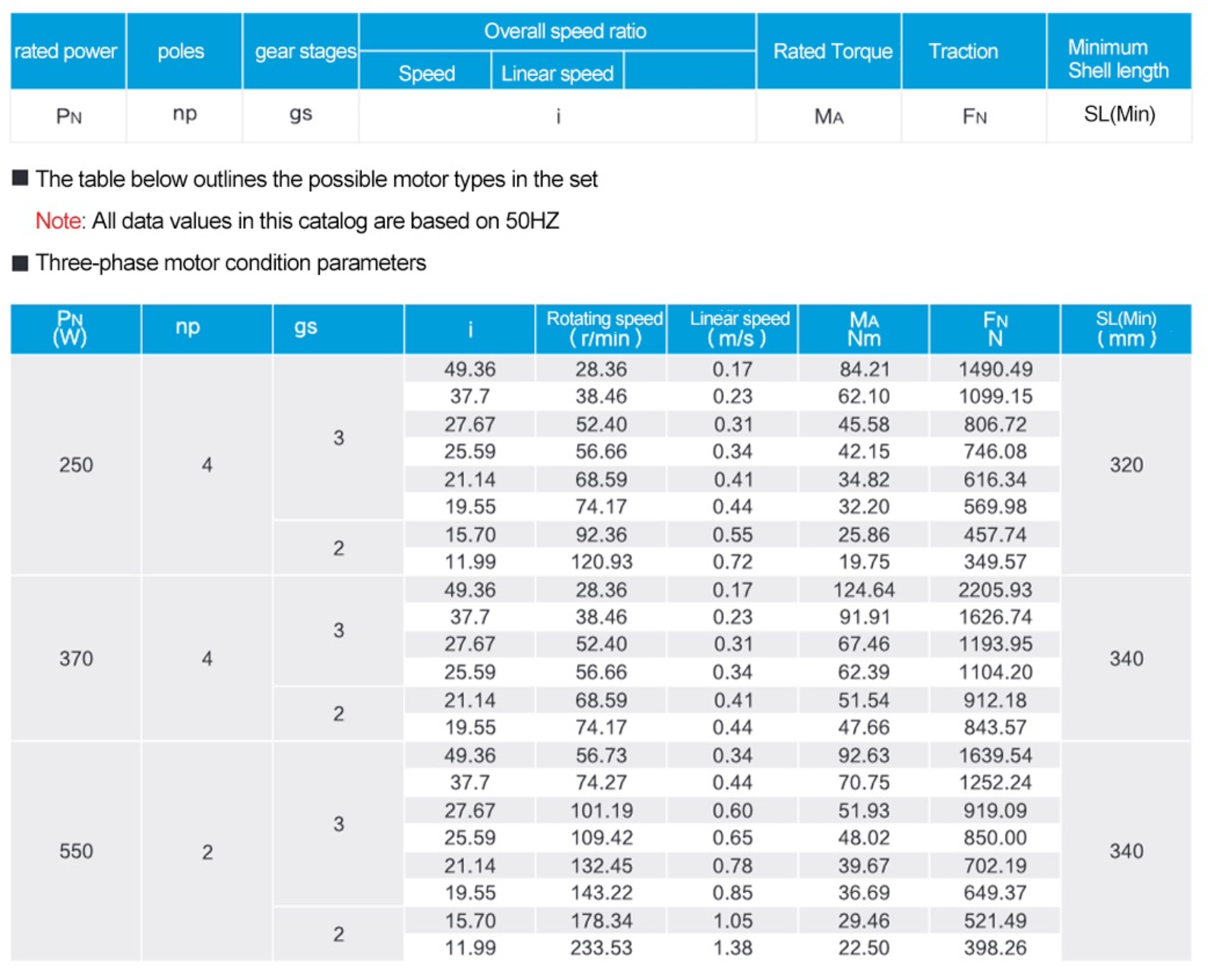

Specification:
