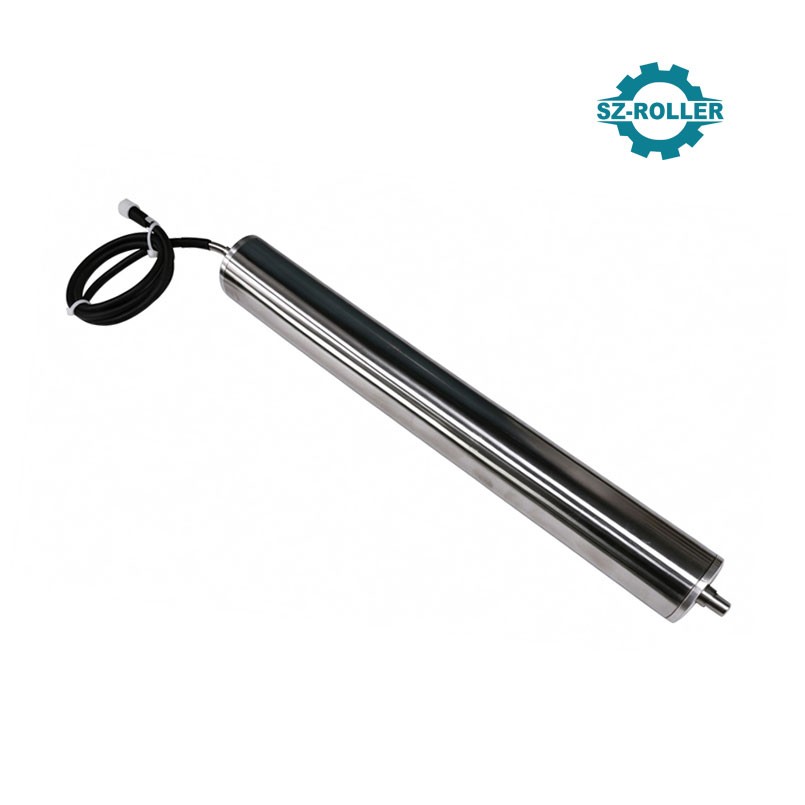

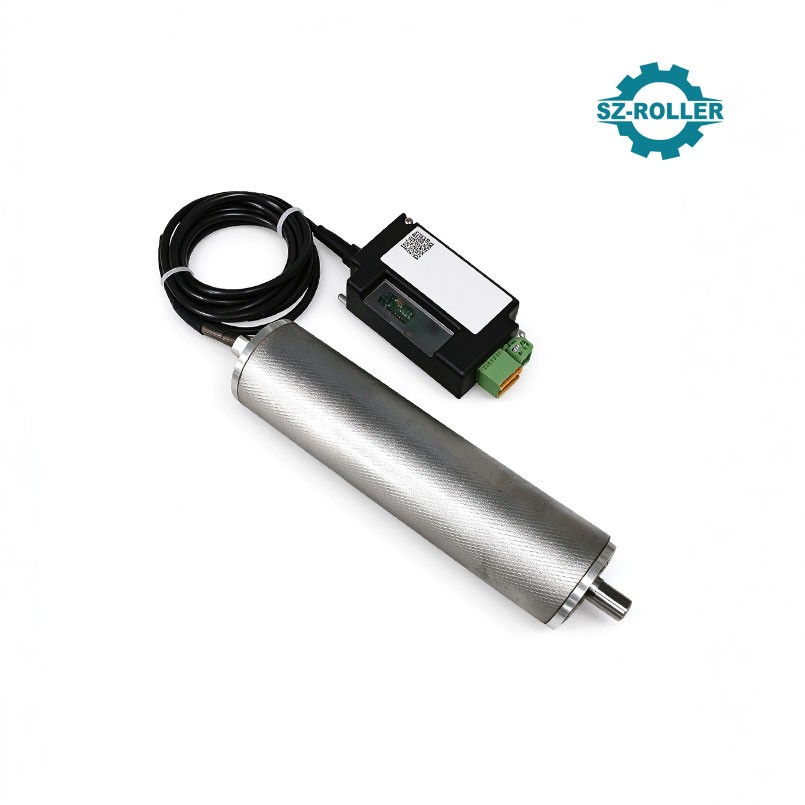

Motor Drive Roller- MS50

* Built-in energy-saving DC brushless geared motor；
* Roller Material/Length/Drive method customizable;
* IP66/67 protection rating;
* Improved operability, with multiple drive cards supporting intelligent control;
* Widely used in logistics conveying, food processing, medical device manufacturing, airport logistics, postal services, and many other industries.

The MS50 Motor Drive Roller is designed for carton conveying and automated conveyor systems. It integrates a DC brushless geared motor and high-precision gears, providing stable torque, low noise, and high efficiency. This design ensures reliable performance in unit handling and light-duty conveyor applications.

Name Code:

---

Model： MS50 — 20 — 500 — D — 024 — S2 — AS

(1) （2） （3） （4） （5） （6）

（1） Diameter :50MM

（2） Speed :4-150M/Min

（3） Roller length :Min.210-2200MM

（4） Voltage supply :DC24V

（5） Material code :SUS201

（6） Custom code :AS Version

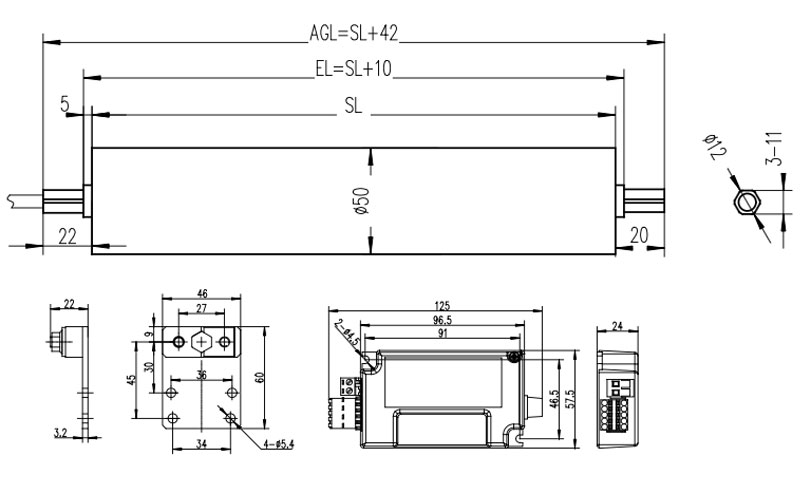

Drawing:

---

Specifications:

---

Diameter	50 mm
Motor Type	DC Brushless Gear Motor
Voltage	DC24V
Rated current	3.5A
Rated Power	80W
Motor Speed	4000 + 10% rpm
Gear ratio	i= 1:36.42
Rated torque	4.66 Nm
Noise	U≤60dB
Drive Type	Straight
Material	Stainless Steel
Surface Treatment	Smooth
