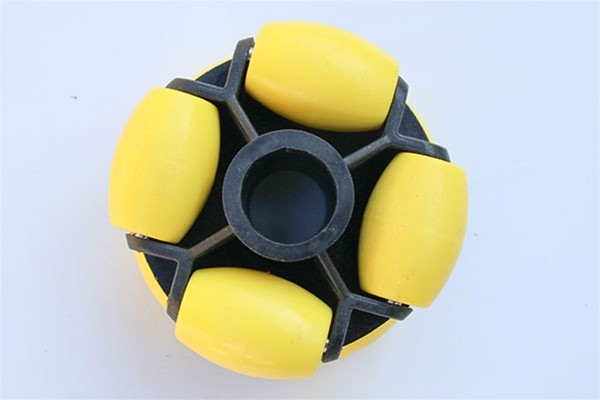

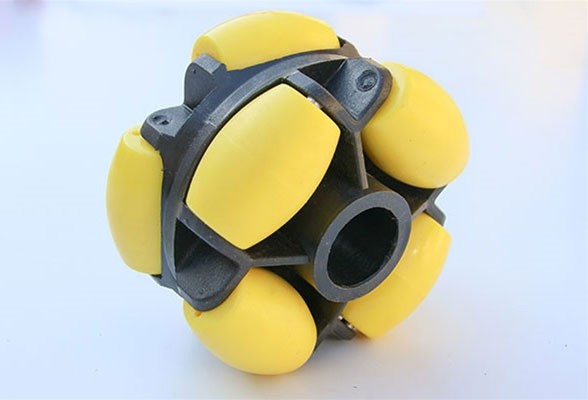

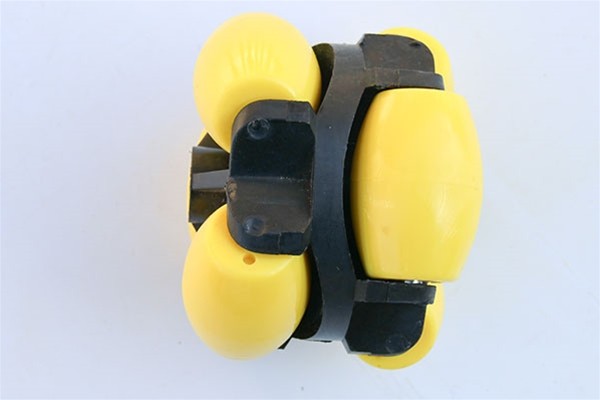

120mm(4.72'' ) Omni Wheel

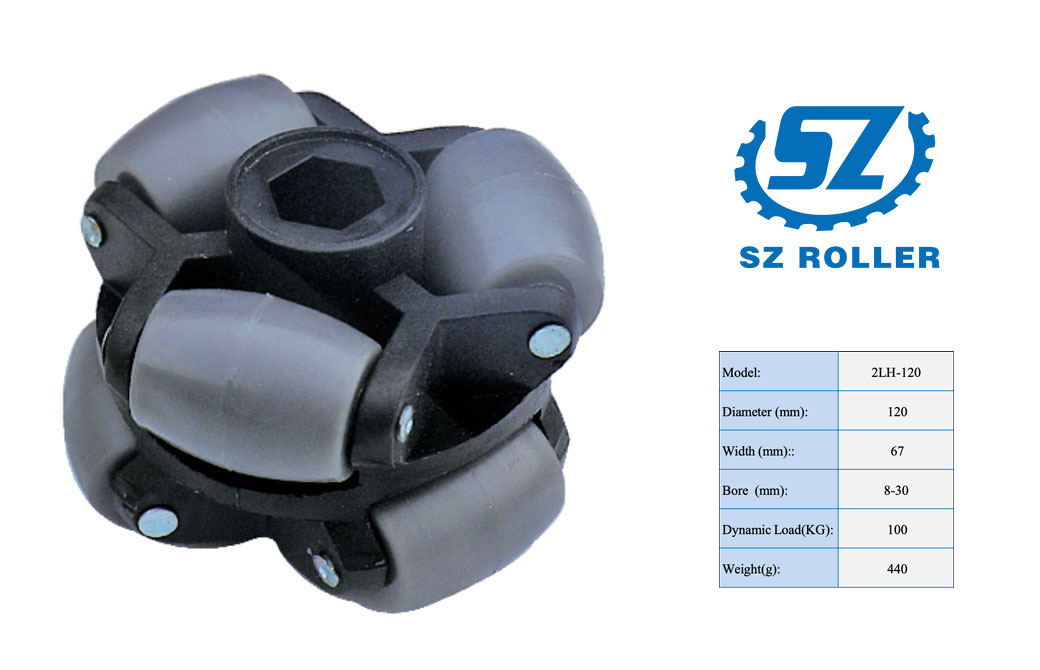

Product Name: 120mm Omni Wheel (4.72'' )

Model: 2LH-120

Diameter: 120mm
Width:60mm
Bore: 8-30mm
Load Capacity: 100kg
Weight: 440g

Manufacturer: SZ-ROLLER
Lead time: 8 days

Product Overview:
Omni wheels roll like normal wheels and glide sideways almost without friction (no slipping when turning). Use these omnidirectional wheels to make your robot turn smoothly or build a complete drivetrain. Each omni-directional wheel can operate independently, and multiple rollers and a compact layout provide additional maneuverability.

Application areas:

Based on omnidirectional wheel technology, it is suitable for service robots, trolleys, transfer conveyors, luggage, etc.
